(TunerPro RT Only)

TunerPro RT implements a feature that allows you to correlate ALDL data with bin parameters in real-time. This feature is useful for quickly identifying problem areas in a tune and the parameters responsible for the problem. This is accomplished by "linking" an XDF (bin definition) file with an ADS (ALDL Datastream definition) file. Once the link has been made, you can edit the XDF items to have direct links to ADS items.

Some notes on data acquisition data tracing:

• XDF Constants with ADX linkage will display the ALDL output in the opened constant editor (see Figure A below)
• XDF Tables with ADX linkage will show the currently active cells in a highlighted state (see Figure B below)
• In order for XDF Tables to be linked, the axes output types must be set to a non-string type (i.e. int, float, etc). If set to string, TunerPro cannot resolve ALDL output to an axis value.
• The link path between an XDF and ADS is relative. If distributing linked files, it is simplest to link the files while they are in the same directory (and distribute them that way). If the ADS and XDF files live in different directories, the files must be distributed (i.e. zipped or rared) with the directory structure intact.

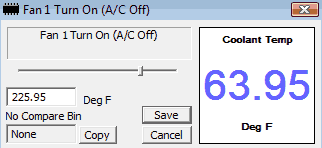

Figure A - Constant Editor With Tracing Enabled

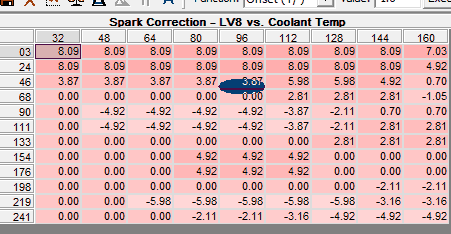

Figure B - Table Editor With Tracing Enabled
