nomecone

bomj911 wrote: ↑Thu May 22, 2025 5:47 pm This is for 402 DME with 949 SW (O2 OFF)

That is awesome. Thanks. This could be put into a xdf as a patch to toggle it on the and off.

nomecone

This should be the other motorcycle section.

Are you sure the xdf is made for your version of firmware. They have to match exact location of data offsets.

XDF from who's website? Where is the firmware dump from? The firmware dump you have does look like it's a bad read if the xdf is correct.

nomecone

File believed to be the Alpina B3 3L ROM dump is now on the project GitHub.

nomecone

There is also Tools>preferences>general [X]Enable Edit Logging

it makes a log file of all changes made to a BIN file

nomecone

Reason:
Have parameter/s dependent on a value being updated. Making adjustments and committing the change requires repeatedly opening the parameter because it closes every time the commit button is pressed.

nomecone

Reason: The description section is small in the edit parameter window. Hard to edit larger descriptions. Suggestion: Would be nice if there was a way to use the big Parameter Comments window to edit the parameter comment/description. Some sort of unlock button or something would be needed as you wou...

nomecone

Hello. Can I have the answer too? From your question I am going to make the assumption that you do not known what TunerPro is as a tool. TunerPro is used to create definition files for ECU firmware files and then view the data and modify it. There is very little specific support for specific platfo...

nomecone

Updated vin2hex sheet to a sane conversion. The other worked but was using a wild method that I found. Understanding the binary conversion is much better.

: vin2hex.PNG (83.85 KiB) Viewed 15793 times

nomecone

I'm very new to 402 so have no clue how it works. ( will read-up about axis ) Thank you for the help nomecone! I need some time to check this out and do some testing. ( will try this weekend ) I will probably come up with a lot of questions, how you will keep helping me with the 402 journey? Thanks...

nomecone

Step 2 continued Here at FA44 this first a self address so you know you are in the right place. 44 FA -> FA 44 . Next is the location of each table written in little endian, last byte first. So 44 F0 -> offset F044 - this is the location of the first table IOT 402.PNG Step 3 begin... Going to F044 y...

nomecone

Step 1: Insert filler h insert filler.PNG What the new offset looks like h new offset.PNG Now in app HxD you can highlight hex and jump to location of address. note some location are in big endian and some are in little endian. (forward and reverse reading of the bytes) Step 2: Image show some speci...

nomecone

You should view with 16 bytes in a row. The data is there and it is same tables of data. You should 1 offset the file so the index of tables table locations are correct. 2 used the index of table information to know where every table begins 3 If you do not already know, learn the Motronic axis label...

nomecone

Interesting read. Googles translation works pretty well. I like the better explanation of the vin in hex code. I may try the software to get info from ROM and see if it uncovers anything. I'd rather it show the location, original hex, and then the resolved value. Then it's a complete translation too...

nomecone

The same/similar maps called lambda from soft 7098 are in a different location in 8599 software

: lamaps.PNG (92.85 KiB) Viewed 4012 times

nomecone

see That Hurxkens and adhamkhe have the same map locations and the data is completely different I think there is a version of BIN and version of XDF mismatch somewhere. Internal location markers in the ROM indicate the ROMs should start offset to x8000. I do not think any of the public 402 bins/xdfs...

nomecone

I played with making a patch in TP to see what it was like. Bit of a hassle but can be made. I used the MAF calibration as my test subject. First thing I found out was the patch appears to be limited to 256 bytes. MAF cal is 512 so it take multiple entries. I am using the 540(800)/EuroM3(806) MAF ca...

nomecone

Per my other thread about TP handling of cell equations I have found that 256 is used in a bunch of equations and it most likely should have been 255.... great. I crossed this... https://www.tunerpro.net/examples Note here the use of 255 motronic axis tp.PNG Then in the example files linked on the p...

nomecone

Baltica wrote: ↑Sun Apr 20, 2025 10:59 pm As far as I know the pump is turned on by turning the key to the start position. m3.3.1 does not have fuel pumping before starting like in ms40.1

Correct answer. I was mislead from the sounds I was hearing.

nomecone

Color me surprised. NO PRIMING is the correct answer. Something else is running for ~1 second at key on and clicking off. Multimeter only showed power to pump when cranking. Not on key 1 or 2 positions while car is off. I did not start the car as I had the power disconnected from the pump to easily ...

nomecone

I crossed this... https://www.tunerpro.net/examples Note here the use of 255 motronic axis tp.PNG Then in the example files linked on the page 256 is used motronic axis tp 2.PNG 255 seems to be correct to me. Max value is FF = 255 (256-255)*40 = 40 this does not seem right. Should be zero. (255-255)...

nomecone

: Screenshot 2025-04-29 134618.png (92.59 KiB) Viewed 4658 times

nomecone

here is an example of getting matching files for a BMW E36 M3 with a ECU(DME) with part number ending in 506 and software version ending in 965. Remember these are community files and can have errors in them. Screenshot 2025-04-29 134123.png Screenshot 2025-04-29 134214.png Screenshot 2025-04-29 134...

nomecone

There is some undo ctrl+z functionality in the editor windows. It is best to keep your own bin file versions saves so you can restore if needed. TunerPro is an editor, I do not think version control is in its scope. Github is one option for keeping versions of bins with the same name. It can keep tr...

nomecone

I finally came back to this and, actually tried editing an axis for load. I have only been able to edit when using raw hex properly. Putting in an updated converted value does not evaluate properly. I wonder if there is a method other than direct hex edit that can work for Bosch style axis in TunerP...

nomecone

My posts are a bit rhetorical at this point. But I'm still trying to figure things out on how I want to display them in the XDF. Currently, all the tables that I have labeled use the hex offset of the data, not the beginning of the axis information. The index of tables in the ROM data uses the begin...

nomecone

I have been trying to resolve the injector constant into its parts. It much be made up of a value representing the injector size, unit conversion factors, number of cylinders, stoichiometric ratio(possible the value stored in the ROM is used), and revolutions per cycle. Google gives results with man...

nomecone

What method do you use for scaling. Did you scale the load axis or did you scale/compress the data that has a load axis to the lower load side?

I'm actively working on defining all the things that get adjusted for injector size changes but what I'm doing is a slow process.

nomecone

I'll put multi meter on and check this weekend

nomecone

Interesting thx. I was wondering how can this happen with only 2 wires to the pump assembly? What do you mean there are no extra wires needed to show the DME the pressure, I cant understand the technical route what is happening can you explain? The only thing hat is not OEM is the pump itself I nev...

nomecone

Update this was not the pump sounds it was something else. no prime at key on I have m50tu car. No rear seat. I can hear something come on when key turned to on. Could be set time only. Pumping is not audible. A relay that turns on is and, ~1sec a click/clunk sound can be heard. Key on, relay clicks...

nomecone

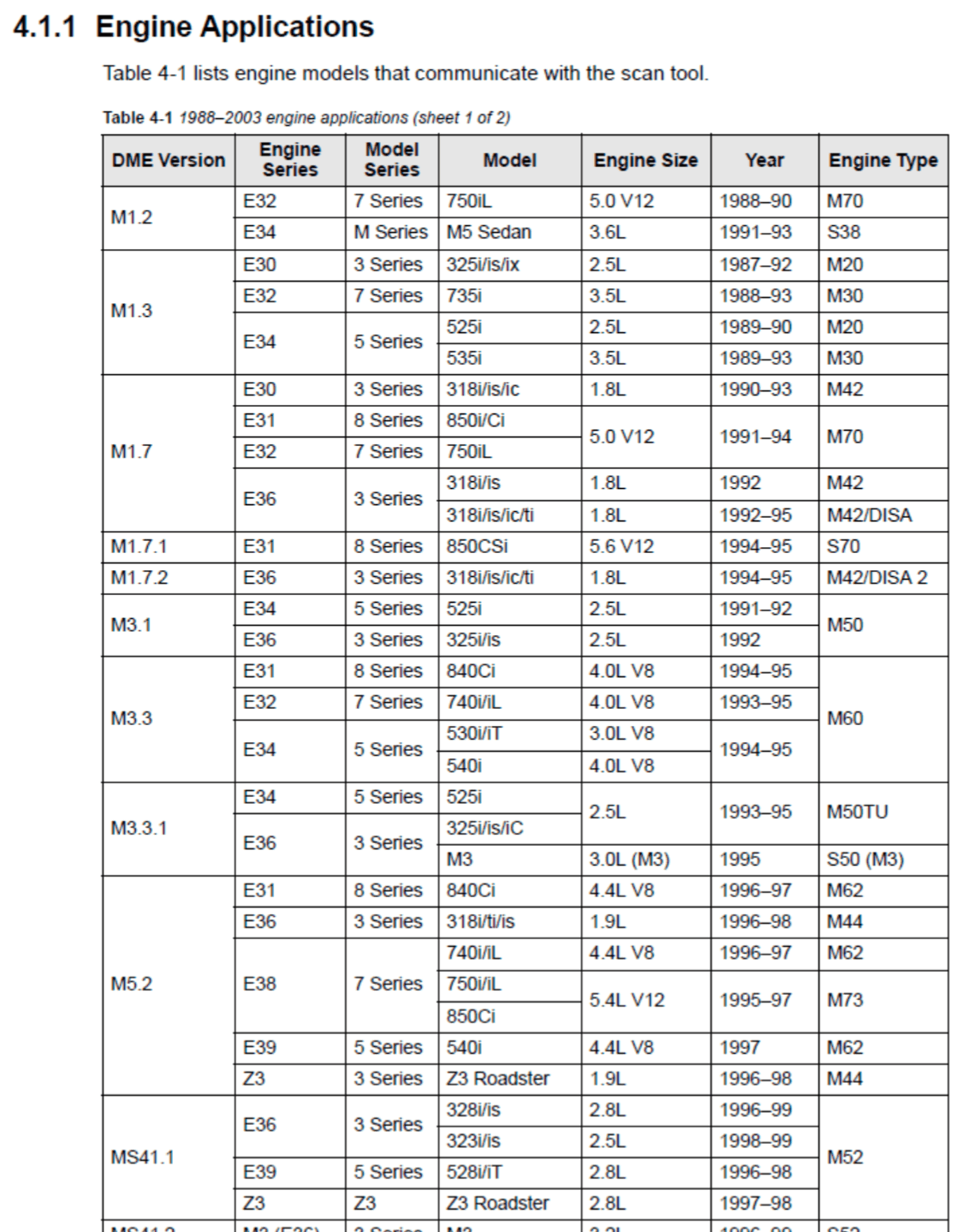

Pump powers on when key is in start position. DME does not regulate it to my knowledge. - Updated with corrected info

The m3.1.1 does not exist to my knowledge either.

: dmes_1000004120.png (184.53 KiB) Viewed 2980 times

nomecone

Have been adding several items in my WIP version of the 413/623 xdf. I have a lot of touch up work to do yet but I am running out of new sources of information without a ton of real car test time, a SIM bench + the time, or diving into the program disassembly time sinks. I started to wonder how much...

nomecone

The original account asking a question has been removed. That is how this reply to a non existing question is here. All posts from OP were removed. OP was bfrqrv update - bc I am now the first post I can change the topic name... so I did. It now is the actual question. I also corrected the motronic...

nomecone

Started adding a few of the other cars OEM bins that are the source of MAF data to the GitHub link in first post. There are posts with converted data around to compare to. If you go about checking it all yourself befor using you will notice that is a bit of conversion error is brought in. A few kg/h...

nomecone

I can't help but look at MAF data. I am a LARGE MAF ENTHUSIAST. This is a table based on the MAF data I have for the HP estimate that you would hit the error limit of the MAF...when you set the max flow to the 4.75V flow. You could push higher into the voltage range but you have to leave some up the...

nomecone

The universal programmer XGecu T48 is probably the best option now that Moates is gone. Moates are back, www.moates.net OOOOOOh. NICE! I have pretty much all of it already. The Moates website is supper slow to load and sometimes getting cloudflare failed to load issue. Maybe website is having issue...

nomecone

You would not want to tune MAF calibration data to tune a car. The only times to tune a MAF calibration curve data is when the data is unknown and you are creating the data, slight adjustment offsets of whole curve for aftermarket MAF in custom housings to dial them in, when modifying a MAF with a r...

nomecone

Put my hardware kit in a box. The universal programmer XGecu T48 is a good option. With Moates back in business the burn2 is a nice small and very easy to use product cost a bit more than a T48 but the software of the t48 has a lot going on that could be confusing...and just seems a bit sketchy. The...

nomecone

The Bosch book about the M-Motronic system that all that enter should read https://e28goodies.com/wp-content/uploads/2016/11/Bosch-M-Motronic-Technical-Instruction.pdf Two flow charts that set the foundation. The BMW software is customized off of the base system so remember your grains of salt. Fun ...

nomecone

Worked a bit on MAF selection sheet and the database of MAF calibration data sheet. More to come. Thanks to ba114 and the MS41 community for a lot of info. Some data if from other sources, some I have personally verified in multiple ROMs, and some from MAF companies. I have focused in on there most ...

nomecone

I believe I have these files. I have them in sketchy unchecked files from the Internet folder. You probably don't really want to use them. If you want to get some cheap pro tunes to look at.... Look on Turners website there are some 413 chips for $2-5 .... Yea probably a pricing error been like that...

nomecone

I used to have chaos in my head and on my computer. There were files signed correctly and incorrectly. I sorted bins by checksum address, adding #7D32 to the name, for example. After that it became clear. I have many bins for different ecu. You have a good collection! Chip for $5) In my country the...

nomecone

Not really. Alpina chip read is the only exotic/different read that is OEM I have. I have all these mod chips but cannot share those.

It was the eprom only for $5.50. DME complete is $75-250.

nomecone

The ba114 account on GitHub that made a romraider profile(a pretty good one too). The 506 file he posted in his GitHub is not original in my opinion. It's an exact match for the file that miller performance cars used for their war chip. They moved the cranking fuel map and checksum and some other st...

nomecone

I am glad to see progress in your work. I have 177 and 609 soft on my computer at home, but I am currently on a business trip, I will be able to send it in 2-3 months I will appreciate these files. I have a few 609s for the internet but unsure if original 100%(have not compared files yet). I do not...

nomecone

I have added some ROM reads that I personally have taken to the github. I have more to put there but I have to label and organize them. I have an oddball 744 software version of the 413 ROM. I have not crossed the 177 or 609 software versions in the wild yet. initial rom upload.PNG Also some screeny...

nomecone

Added Google sheet to OP that anyone can comment in cells to help define the 413/623 ROM

nomecone

Micro progress on side questions. The ba114 romraider 413/506 definition file has a few things in it that have not been discussed I think. I will warn the 506 rom there is a wacky one that is the same as what miller performance cars based there warchip rom on. On the topic of a collaborative spreads...

nomecone

How should fueling correction table data be viewed? What is the most correct? Main fuel tables are RPM v. Tl(Time Injection Basic)(ms). The data in the table is correction factor at that point. Over the years of following this topic most people,I think, and most public XDFs for sure do one of the fo...

nomecone

Baltica wrote: ↑Thu Mar 27, 2025 10:56 am To make the injection later I need to increase the values, right?

The tables are for vanos actuator dwell time as far as I know. Not sure of effect on injection if at all... Oh and D6 seems to be raw load. D5 is load filtered and damped.
